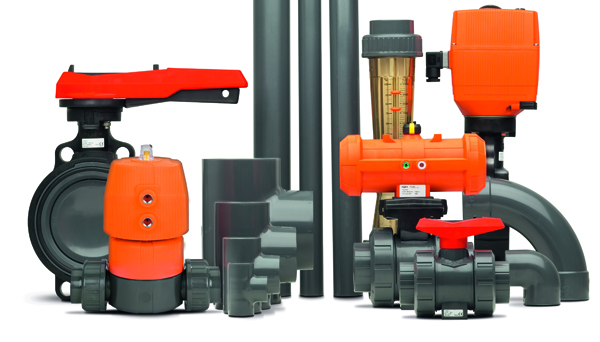

UPVC System

Overview

PVC-U shows very good characteristics in the temperature range from 0° to +60°C. Ensuring highest possible thermal stability and chemical resistance PVC-U systems stand up to the most demanding conditions, particularly where media such as acids, alkalis, bases and salts are transported. The universal solution covers all aspects of safety, efficiency and reliability required to build, maintain and operate industrial piping systems.

Pressure rating up to 16 bar.
Temperature range 0°C to +60°C.

ASTM Std

Material : ASTM D 1784 (cell classification 12454)

Colour: Grey

Temperature rating : From 0°C to 60 °C

Pipe : ASTM D 1785 - SCH 40 & SCH 80 Pipes

Fittings : ASTM D 2467 SCH 80 Socket & Threaded Fittings – SCH 80 Fittings

Flanges : Flange Hole Patterns - ANSI B16.5

Range : 3/8” to 24”

DIN (Metric) Std

Material: PVC-U, Polyvinylchloride unplasticised DIN 8061

Colour: GREY

Pipe: DIN EN ISO 15493, DIN 8062 – PN 10 & PN 16 Pipes

Fittings : DIN 8063, ISO 727, UNI EN 1452 – PN 10 & PN 16 Fittings

Flanges : DIN8063-DIN2501 drilled PN10/16,

Range : 6 mm to 400 mm

Main Advantages

  • Versatility of use
  • Very good chemical and corrosion resistance
  • Proven physiological harmlessness and therefore suitable for contact with food
  • No influence on drinking water quality
  • Biologically inert; no support of microbial growth
  • High mechanical tensile strength
  • Secure solvent cementing using Tangit
  • Use of tin stabilizers for fittings and valves

Main Applications

  • Water Treatment
  • Marine
  • Chemical Process Industry
  • Microelectronics
  • Power Plants
